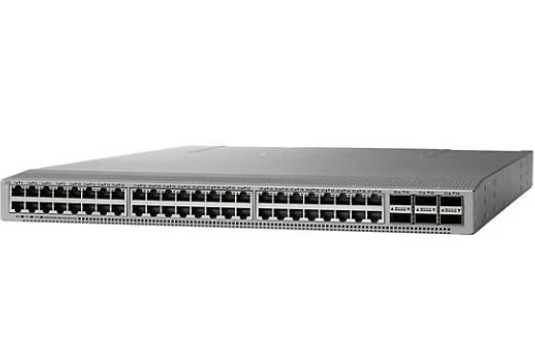

N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec

Name: N9KC93108TCFX Nexus 9300 With 48p 10G BASET And 6p 40G100G QSFP28 MACsec
Brand: Cisco
Price: 1 USD

China N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec wholesale

Brand Name : Cisco

Model Number : N9K-C93108TC-FX

Certification : CE

Place of Origin : China

MOQ : 1 PC

Payment Terms : T/T,Western Union

Delivery Time : 1-3 Days

Model : N9K-C93108TC-FX

Switch Series : Cisco Nexus 93108TC-FX

Downlink Speeds : 100Mbps, 1Gbps, 10Gbps

System Memory : 24GB

Power Supplies : Dual 500W AC / 930W DC / 1200W HVAC / HVDC

Max Power Consumption : 460W (AC/DC)

CPU : 4-core processor

Storage : 128GB SSD

Warranty : 1 Year

Condition : Brand New

Lead Time : 3 Days

Contact Now

N9K-C93108TC-FX Overview

The Cisco Nexus 93108TC-FX Switch is a 1RU switch that supports 2.16 Tbps of bandwidth and over 1.25bpps. The 48 10GBASE-T downlink ports on the 93108TC-FX can be configured to work as 100-Mbps, 1-Gbps, or 10-Gbps ports. The uplink can support up to six 40- and 100-Gbps ports, or a combination of 1-, 10-, 25-, 40, 50-, and 100-Gbps connectivity, offering flexible migration options.

N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec

Quick Spec

Table 1 shows the quick specs of N9K-C93108TC-FX.

Model	N9K-C93108TC-FX
Physical dimensions (H x W x D)	1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
MTBF	319,790 hours
CPU	4 cores
System memory	24 GB

Ports

Downlink Ports: 48 x 10 Gigabit Ethernet (10GBASE-T) ports, which can also support 100Mbps, 1Gbps, and 10Gbps speeds.
Uplink Ports: 6 x 40/100 Gigabit QSFP28 ports.

Performance

Switching Capacity: 2.16 Tbps.
Forwarding Rate: 1.44 Bpps (Billion packets per second).
MAC Address Table Size: 512,000 entries.
Buffer Memory: 40 MB shared buffer.
Latency: Under 1 microsecond (port-to-port).

Key Features

Form Factor: 1U rack-mountable.
Architecture: Cisco Nexus 9000 platform built on modern system architecture.
Security: MACsec encryption on all ports.
Scalability: Designed for highly scalable data centers and supporting a large number of endpoints.
Flexibility: Offers flexible port-speed configurations for migration.
Management: Supports Cisco NX-OS software, CLI, and DCNM.

Physical and Environmental

Dimensions: 1.72 x 17.3 x 22.5 inches (4.4 x 43.9 x 57.2 cm).
Power: Dual redundant, hot-swappable power supplies.
Airflow: Supports port-side intake and exhaust, and front-to-back airflow.
